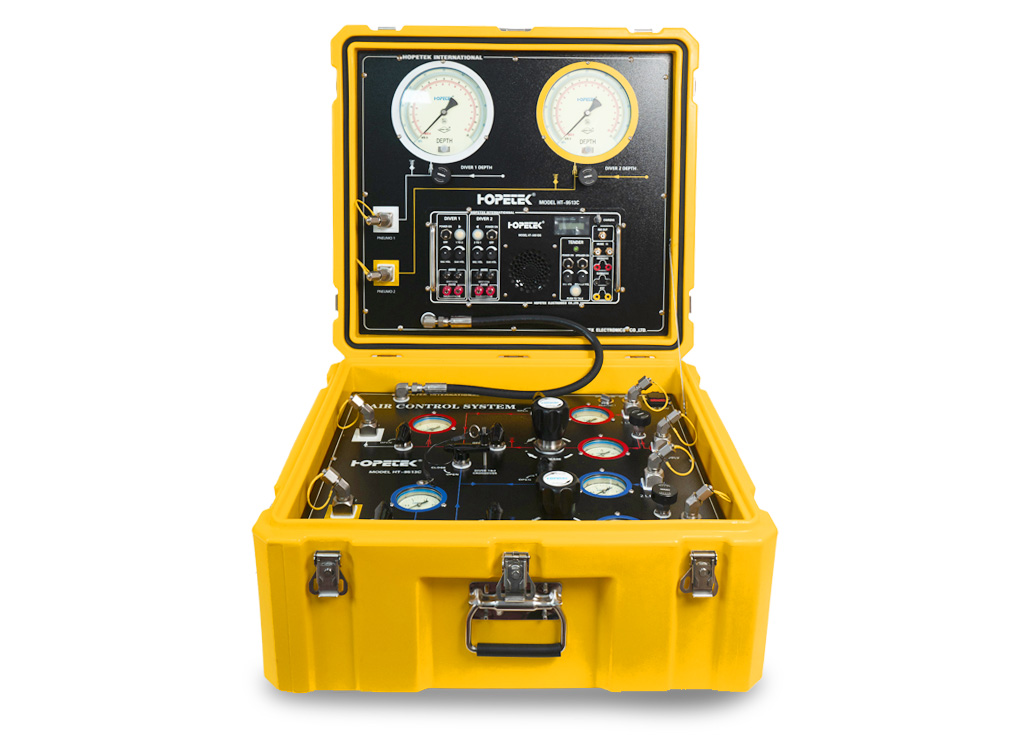

Model:HT-9513C
Feature introduction:
Supports two divers working at different depths
●Two independent voltage regulators
two-way high-pressure air input
two-way low-pressure air input
Pressure gauge, depth gauge with luminous display function
●Using upper and lower cover design, easy to operate and read values
Double communicator function, perfect three-way communication, in line with IMCA standards
Communicator with LCD battery display function
Communicator low battery alarm function
●Built-in 13400mAh lithium battery, with broadcast call function, optional diver call function
Anti-reverse charging port, imported accessories, designed for embedded installation of gas distribution plate
Medical grade 316L stainless steel pipe
| Name Name | Parameters Numbers |
| High pressure gas cylinder chuck | YOKE standard bottle head valve interface, with air release valve, tube length 130cm |
| High pressure gauge | 60mm diameter; range: 0-40MPa; accuracy: ±2.5% |
| depth table | 150mm diameter; range: 0-100 meters; minimum indication unit: 0.5 meters; accuracy: ±0.4% |
| umbilical pressure gauge | 100mm diameter; range: 0-2.5MPa; accuracy: ±1.6% |
| Ball valve | 316L stainless steel body; rated pressure: 40MPa; operating temperature: -28 to 180℃ |
| Pressure regulating valve | Body material: 316L stainless steel; Maximum inlet pressure: 40MPa; Output pressure range: 0-2.0MPa; Working temperature: -40 to 74°C |
| needle valve | 316L stainless steel body; rated pressure: 35MPa; operating temperature: -28 to 220℃ |
| selector valve | 316L stainless steel valve body; two in and one out; pressure resistance: 40MPa; working temperature: -28 to 180℃ |
| one-way valve | 316L stainless steel body; rated pressure: 40MPa; operating temperature: -28 to 180℃ |
| Proportional unloading valve | 316L stainless steel valve body; set pressure relief: 2.2MPa; the safety relief valve opens when the umbilical pressure reaches the set pressure, and the valve closes when the umbilical pressure drops below the set pressure value |
| Low voltage input interface | 316L stainless steel body, outer wire 9/16*18, 74° inner cone |
| Main air supply output interface | 316L stainless steel body, outer wire 9/16*18, 74° inner cone |
| Sounding pipe interface | 316L stainless steel body, outer wire 7/16*20, 74° outer cone |
| Internal piping | Medical and sanitary grade 316L stainless steel pipeline |
| Internal fittings | 316 stainless steel body; maximum pressure: 40MPa; working temperature: -40 to 232℃ |
| weight | Net weight 30.8kg |
| Dimensions | 600mm*550mm*375mm |
| communicator | 9051DS |
